Description

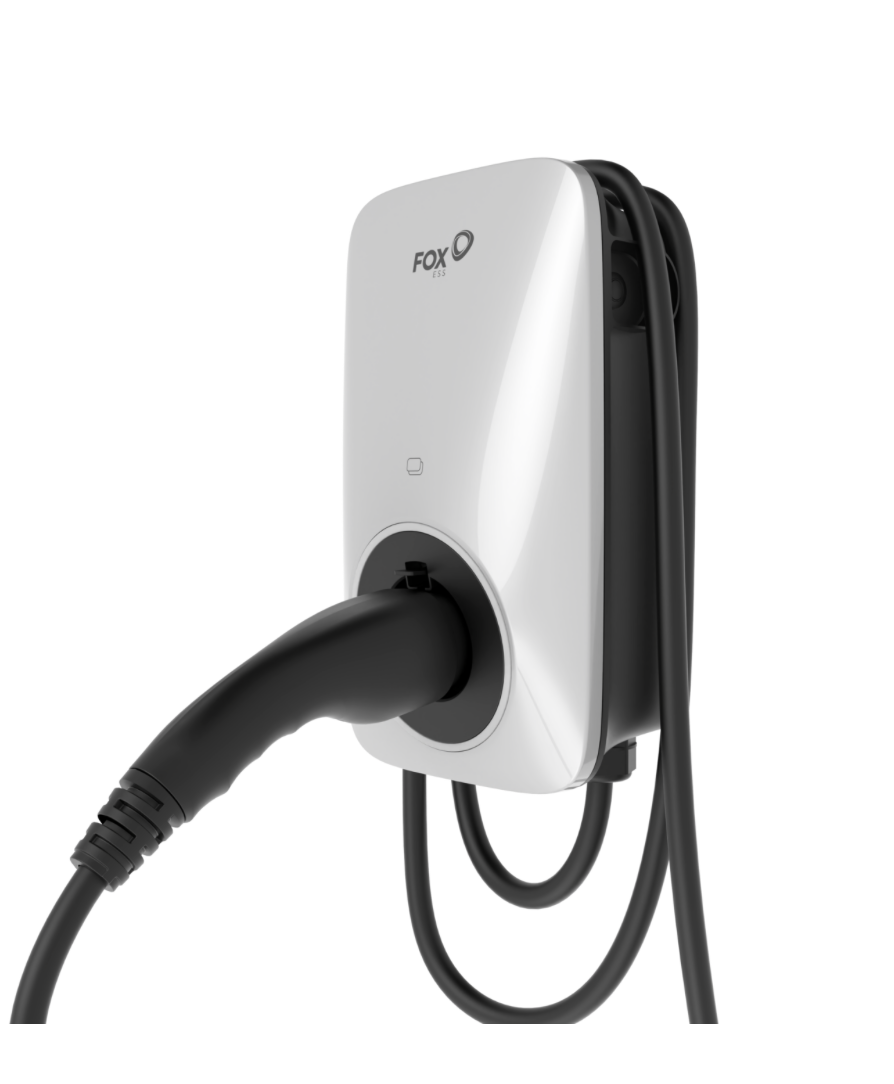

Fox ESS A Series Multiphase 7/22kW Tethered EV Charger – White – 7.5m Cable
The Fox ESS A Series A022KP1-E-W is a premium multiphase smart EV charger designed for residential and commercial applications, combining high-performance charging, advanced connectivity, and seamless integration with solar energy systems. Finished in an elegant white enclosure, this model complements modern architectural designs and lighter exterior finishes while delivering the same powerful performance as the black variant.
Capable of automatically supporting both single-phase and three-phase electrical installations, the charger delivers up to 7.3kW on single-phase power or up to 22kW on three-phase systems, providing fast, reliable charging for a wide range of electric vehicles. The integrated 7.5-metre tethered Type 2 charging cable offers convenient everyday use and compatibility with most EVs available in Australia and Europe.
Built with future-ready technology, the A Series supports OCPP 1.6 JSON and OCPP 2.0.1 protocols for advanced energy management and smart charging integration. Connectivity options include WiFi, Bluetooth, Ethernet LAN, RFID authentication, and optional 4G communication, allowing flexible monitoring and control through local networks or cloud-based platforms.
The charger is specifically engineered to work alongside Fox ESS hybrid inverter systems, enabling solar surplus charging and dynamic load balancing to maximize self-consumption of solar energy while protecting household electrical infrastructure from overload.
Constructed for demanding indoor and outdoor environments, the unit features an IP65-rated weatherproof enclosure and IK08 impact protection. It also includes integrated residual current protection (30mA AC + 6mA DC) for enhanced safety and is hardware-ready for future Vehicle-to-Grid (V2G) and ISO 15118 bidirectional charging technologies.

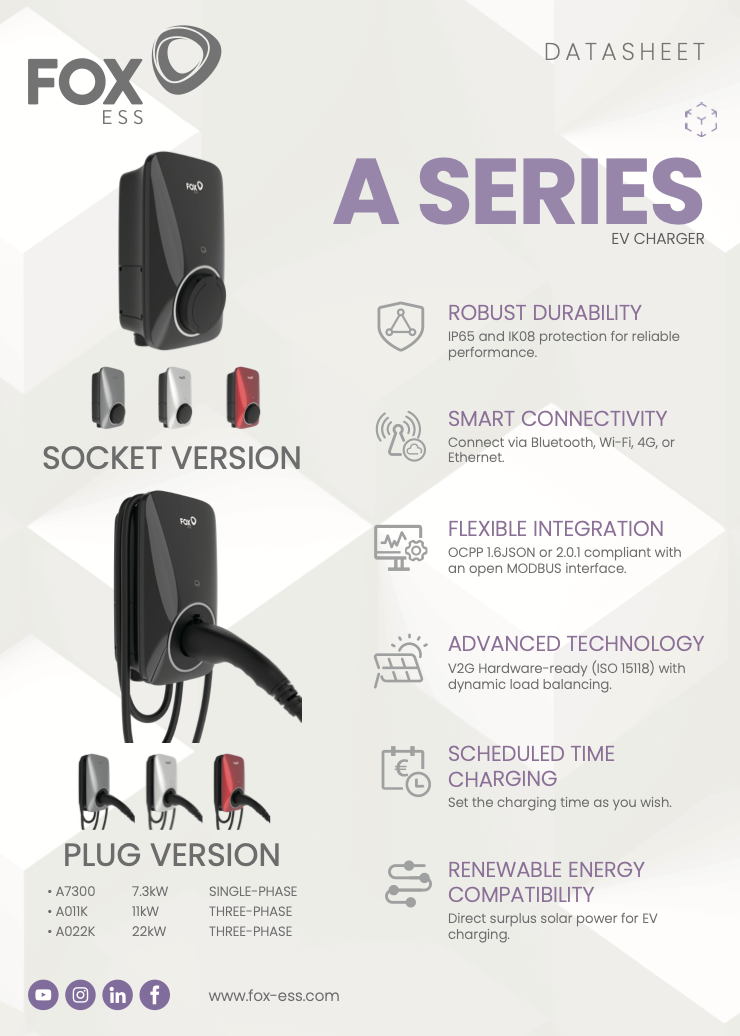

Key Features
- Up to 22kW charging power on three-phase installations
- Up to 7.3kW charging power on single-phase installations
- 7.5m tethered Type 2 charging cable (IEC 62196)
- OCPP 1.6 JSON and OCPP 2.0.1 compliant
- WiFi, Bluetooth, Ethernet LAN, RFID and optional 4G connectivity
- Dynamic load balancing for optimized energy management
- Solar surplus charging compatibility with Fox ESS hybrid inverters
- Built-in residual current protection (30mA AC + 6mA DC)
- Future-ready V2G and ISO 15118 hardware support
- IP65 weatherproof enclosure
- IK08 impact resistance rating
- Operating temperature range from -30°C to +50°C
- RCM certified for Australia
- CE, CB and UKCA certified

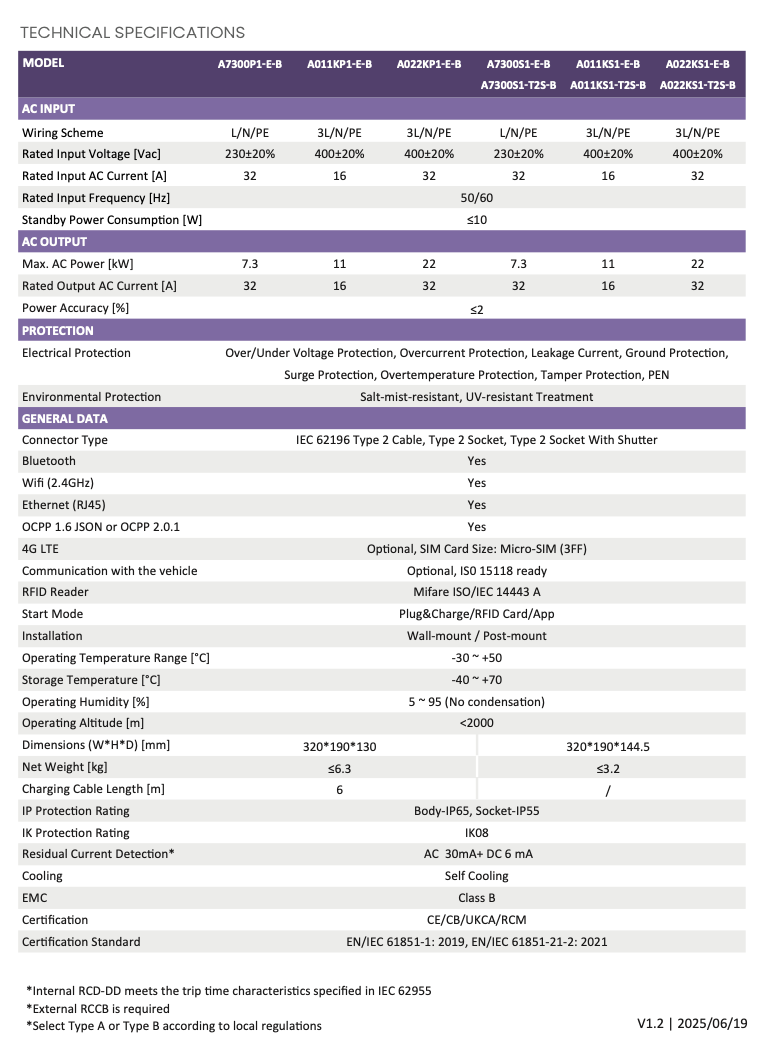

Technical Specifications
| Specification | Details |
|---|---|
| Model | A022KP1-E-W |
| Colour | White |
| Maximum Charging Power | 22kW (3-Phase) / 7.3kW (Single-Phase) |
| Maximum Charging Current | 32A |
| Connector Type | Type 2 Tethered (IEC 62196) |
| Cable Length | 7.5m* |
| Connectivity | WiFi, Bluetooth, LAN, RFID, Optional 4G |
| Communication Protocols | OCPP 1.6 JSON, OCPP 2.0.1 |
| Protection | AC 30mA + DC 6mA Residual Current Protection |
| Ingress Protection | IP65 |
| Impact Rating | IK08 |
| Dimensions | 190 × 320 × 130 mm |
| Weight | ≤ 6.3 kg |
| Operating Temperature | -30°C to +50°C |
| Certifications | RCM, CE, CB, UKCA |
| Standards | EN/IEC 61851-1:2019, EN/IEC 61851-21-2:2021 |
*Note: Please confirm cable length at the time of ordering. Some Fox ESS A-Series documentation specifies a standard tethered cable length of 6 metres.
